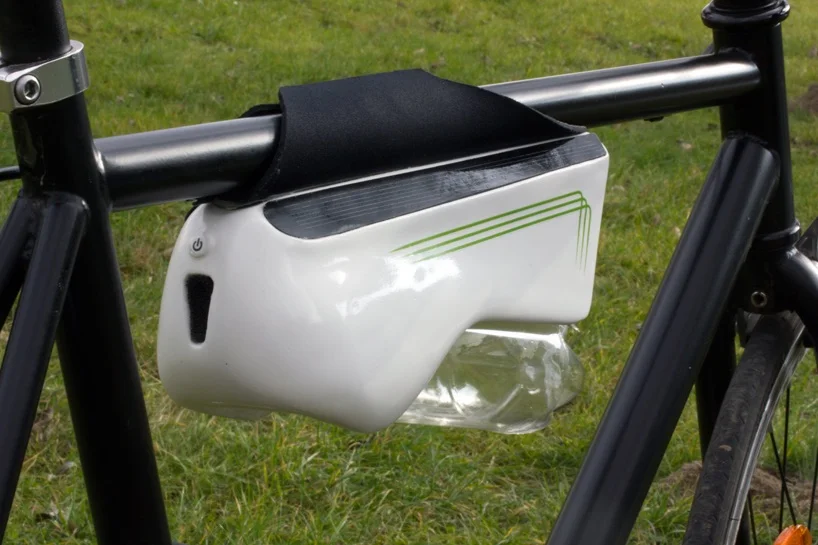

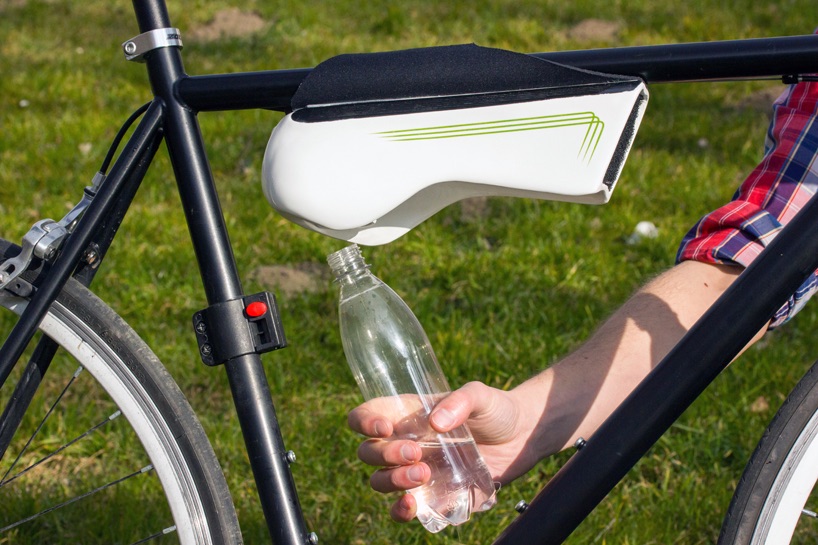

the fontus self-filling water bottle by kristof retezar, collects the moisture contained in air and condenses it as safe drinking H2O. the device harvests up to 0,5 liters in an hour when under the right climatic conditions. it is useful for long bike journeys as well as in world regions where freshwater is scarce yet humidity is high. The bottles can be turned into a vertical position and loosened divided-in-two peltier element cooler is powered by solar cell energy to cool down the upperside and heat the bottom. wind enters the lower section at high speed and cools it down. the air then moves to the upper chamber where it is stopped by little perforated walls in order to separate the particles. the droplets then flow through a pipe to be stored in a container.

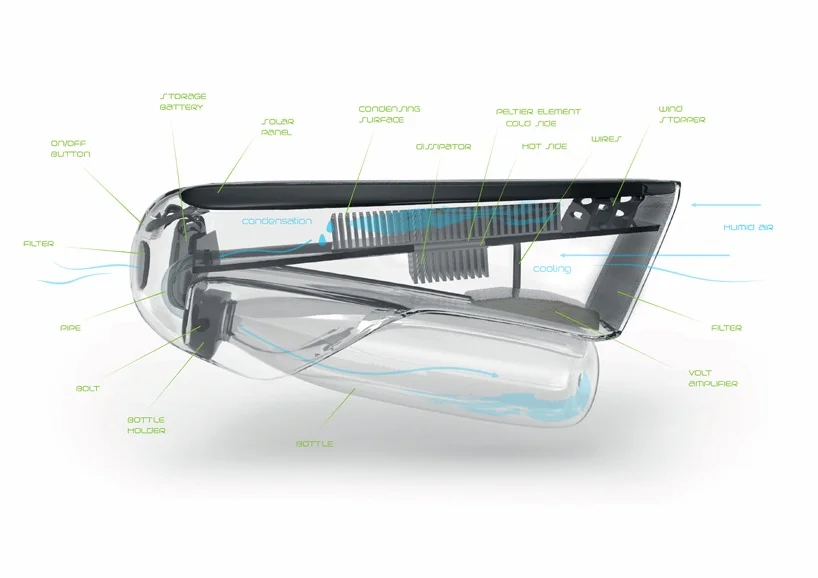

0,5l can be generated in an hour whilst in humid conditions, trial and testing was an important part of ‘fontus’ self-filling H2O bottle’s development. ‘after more than 30 experiments, I finally achieved a constant drop-flow of one drop of condensed water per minute. after developing a functioning inner system, I designed a compact and practical hull which can be easily attached to a bicycle, integrates the water bottle and can be comfortably handled.’ said kritstof for the james dyson awards. The device is helpful for long bike journeys diagram of how the air condenses and harvests water molecules
